I’ve worked with Whirlpool appliances for years, and this Whirlpool Ice Maker Troubleshooting Manual gathers proven fixes, simple diagnostics, and safety tips. Read on to learn how the ice maker works, common causes of failure, step-by-step checks, and when to call a pro. This guide blends hands-on experience, clear procedures, and plain language so you can solve issues fast and with confidence.
How the Whirlpool Ice Maker Works
A basic grasp of how your unit works makes troubleshooting easy. The Whirlpool Ice Maker Troubleshooting Manual explains main parts and their roles.
- Ice mold or tray: Holds water to freeze into ice cubes.
- Water inlet valve: Lets water fill the mold.
- Fill tube: Carries water to the mold.
- Thermostat or sensor: Senses ice level and temperature.
- Ejector and motor: Push ice into the bin.
- Control module: Runs the cycle and handles signals.
Most issues come from a few parts. Understanding them helps you test each one.
Common Problems and Causes
This section lists frequent faults covered in the Whirlpool Ice Maker Troubleshooting Manual and short causes.
- No ice production. Cause: Water supply off, clogged filter, or failed inlet valve.
- Small or hollow cubes. Cause: Low water pressure or partial fills.
- Ice maker won't cycle. Cause: Faulty thermostat, motor, or control board.
- Leaks or ice around the bin. Cause: Cracked fill tube or poor door seal.
- Ice tastes or smells bad. Cause: Old filter, bacteria, or standing water.
Each symptom points to a few likely parts. Use the manual’s checklist to narrow the issue.
Step-by-Step Troubleshooting Manual
Follow these steps from the Whirlpool Ice Maker Troubleshooting Manual to find the problem fast.
-
Check the basics
- Confirm water supply is on and the valve is open.
- Check the refrigerator temperature is set to recommended range.
- Inspect the door seal for gaps.
-
Inspect the water flow
- Replace the water filter if older than six months.
- Remove the fill tube and check for ice or blockages.
- Test water pressure at the valve; weak flow means low pressure.
-
Test the ice maker cycle

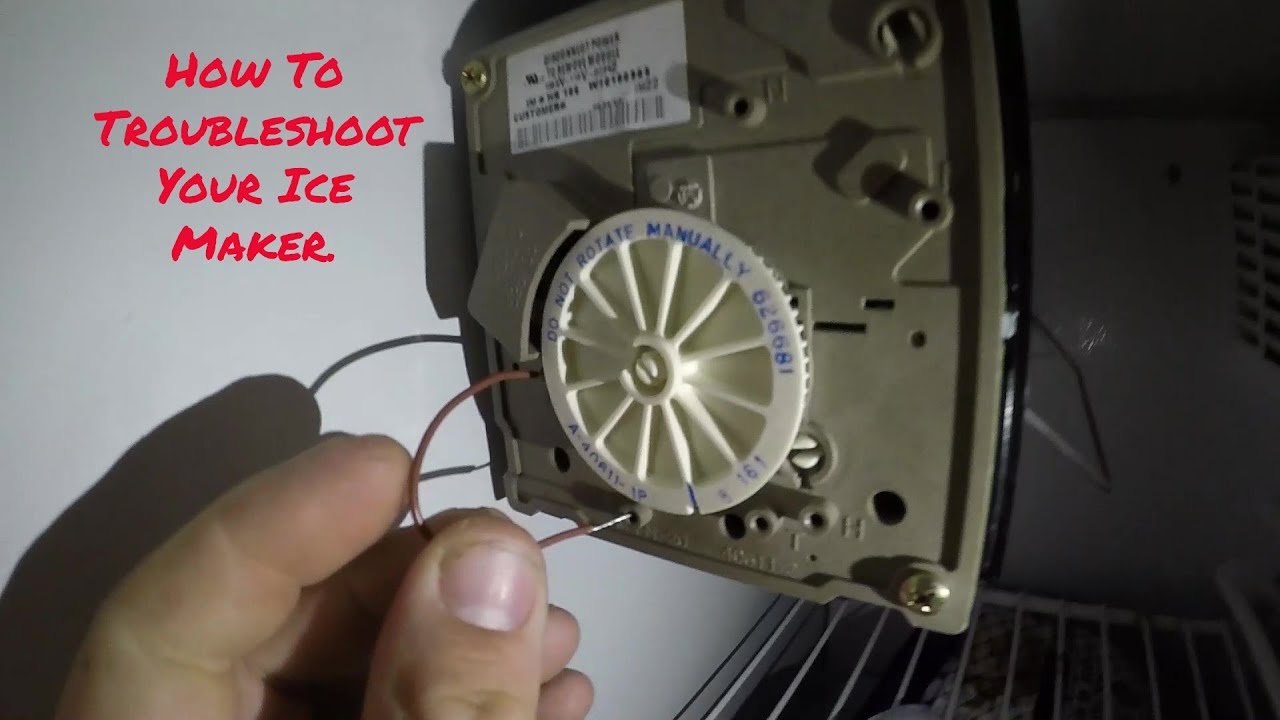

- Manually start a cycle if your model has a test switch or diagnostic mode.
- Listen for motor and fill sounds. No sound may mean a dead motor or module.
-
Check electrical and sensors
- Unplug the fridge before probing wires.
- Use a multimeter to test the inlet valve coil and motor for continuity.
- Test the thermostat or sensor for open or closed circuit per specs.
-
Examine the mechanical parts
- Look for broken ejector blades or jammed trays.
- Replace cracked fill tubes or damaged water lines.
- Clear ice blockages in the bin area and dispenser chute.
-
Reset and observe
- After fixes, reset power for a full minute.
- Run a test cycle and watch for proper fill and eject steps.
Keep notes as you test. The Whirlpool Ice Maker Troubleshooting Manual recommends a methodical approach to avoid repeating checks.
When to Repair vs Replace
Deciding repair or replace is key in the Whirlpool Ice Maker Troubleshooting Manual.
- Repair if a single replaceable part fails. Examples: inlet valve, motor, thermostat, or filter.
- Replace the whole unit if control board failure is widespread or repair cost exceeds 50% of replacement.
- Consider age: units older than 10 years often cost more to fix than replace.
- Warranty matters: check warranty before spending on repairs.
If parts are available, repair is often the fastest route. If issues repeat, replacement may save money.
Preventive Maintenance Tips
Little care prevents many problems in the Whirlpool Ice Maker Troubleshooting Manual.
- Replace water filter every six months to prevent clogs and taste issues.
- Clean the ice bin and mold every three months with mild soap and water.
- Keep temperature stable. Ideal freezer temp is around 0°F (-18°C).
- Avoid storing heavy items on the door to prevent seal damage.
- Flush water lines after filter changes or long idle periods.
I do a quick filter check monthly. Small habits cut big repairs.
Parts, Tools, and Safety
The Whirlpool Ice Maker Troubleshooting Manual lists needed parts and safe practices.
Parts you may need
- Water inlet valve
- Ice maker motor module
- Thermostat or sensor
- Fill tube and clamps
- Water filter
Tools to keep handy
- Multimeter for continuity and voltage checks
- Nut drivers and screwdrivers
- Pliers and towels for water spills
- Flashlight for tight spots
Safety tips
- Always unplug the refrigerator before repairs.
- Turn off the water supply before removing lines.
- Wear gloves when handling ice and sharp edges.
- If you find refrigerant leaks or wiring burns, call a licensed tech.
These basics save time and risk. The Whirlpool Ice Maker Troubleshooting Manual stresses safe, steady work.
Troubleshooting Examples and Case Studies
Real fixes help you learn. Here are short cases from my experience following the Whirlpool Ice Maker Troubleshooting Manual.
Case 1: No ice but light works
- Symptom: Ice maker light on, no ice.
- Fix: Found clogged filter and weak water flow. Replaced filter and cleared fill tube. Ice returned in two cycles.
Case 2: Small, hollow cubes
- Symptom: Tiny, hollow cubes and slow making.
- Fix: Water pressure was low due to kink in supply line behind fridge. Straightened line and replaced a brittle section. Problem solved.
Case 3: Intermittent cycling
- Symptom: Ice maker works sometimes.
- Fix: Motor module had intermittent contact. Replaced module and tested. Unit ran reliably afterward.
Lessons learned
- Start with simple checks first. Water and filters cause many faults.
- Document steps. It helps when parts arrive or you call support.
- If you feel unsure about electrical tests, get help.
These cases reflect routine scenarios covered in the Whirlpool Ice Maker Troubleshooting Manual. They show why method and care matter.
Frequently Asked Questions of Whirlpool Ice Maker Troubleshooting Manual
What causes an ice maker to stop making ice?
Most often, the water supply is off, the filter is clogged, or the inlet valve failed. Also check temperature and door seal.
How do I test the ice maker motor?
Unplug the fridge and use a multimeter to check continuity on the motor terminals. Run the unit’s diagnostic cycle if available to listen for motor activity.
Can a dirty water filter cause bad-tasting ice?
Yes. Old filters trap contaminants and allow bacteria growth, which affects taste and smell. Replace the filter regularly.
How long should it take to produce a batch of ice?
A full batch usually takes 2 to 4 hours depending on model and freezer temp. Slower cycles may indicate low water pressure or temperature issues.
Is it safe to replace the inlet valve myself?
Yes, if you turn off power and water first and have basic tools. If you see refrigerant lines, wiring damage, or are unsure, call a pro.
What if ice maker makes loud noises?
Loud noise may come from a failing motor, jammed ejector, or items inside the bin. Inspect the area and remove obstructions before replacing parts.
Conclusion
This Whirlpool Ice Maker Troubleshooting Manual gives clear steps to identify and fix most ice maker issues. Use the checks in this guide to test water flow, filters, sensors, and motors before replacing major parts. Take safety steps, write down findings, and make small fixes first. If a fix seems complex or electrical, call a certified technician. Try one recommended tip today, and share your result or question below to get more help.
